Features:

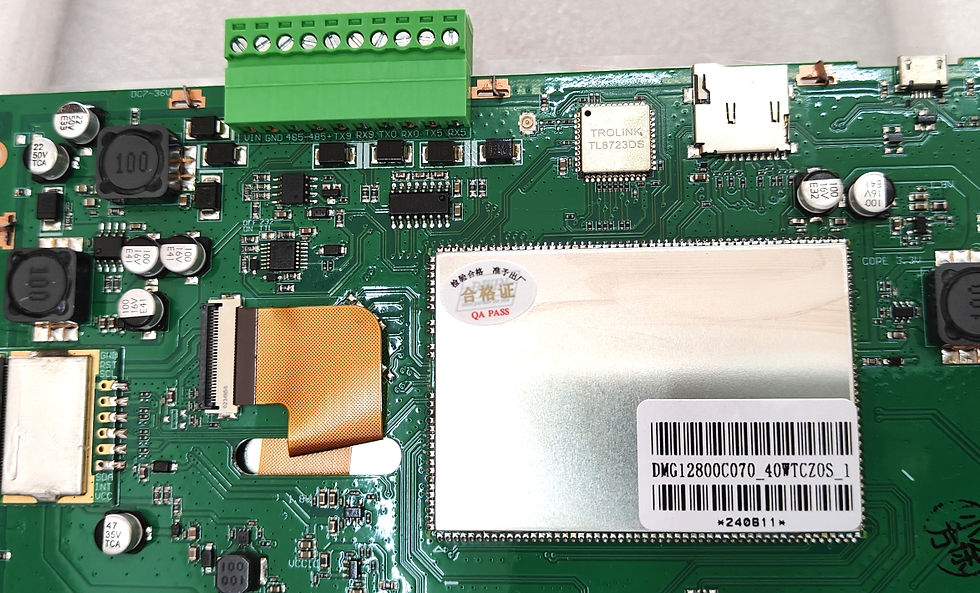

● Industrial Linux intelligent display terminal based on RK3566 - Cortex-A55, quad-core , Debian 10 version.
● 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, capacitive touch.
● Adopt Debian 10 Desktop environment for secondary development.
● Available for multi-language, vector font library, picture library, video library and audio library.
● Compatible with network cable connection with PC to download update project.
● Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.


Peripherals and Interfaces :
Properties                 Parameters           Description
COM                           2-way RS232               UART5 & UART9
                                      1-way RS485               UART8
                                       1-way TTL/COMS      UART0
USB Interface                 3-way                      HOST*2,OTG*1
Headphone Interface    1-way                 3.5mm spacing interface
Speaker Interface            1-way               2Pin_1.25mm interface
Microphone Interface     1-way              2Pin_1.25mm interface
Camera Interface              1-way              USB, Not supported by Mipi
SD Card Slot                        1-way              Drawer type card slot(Max 64G)
Ethernet Interface             1-way             10/100Mbps
WIFI Module                        1-way             IEEE 802.11Bb/g/n,2.4G,Bluetooth
RTC                                         1-way          Button cell for power supply. Accuracy: ±20ppm @25℃
