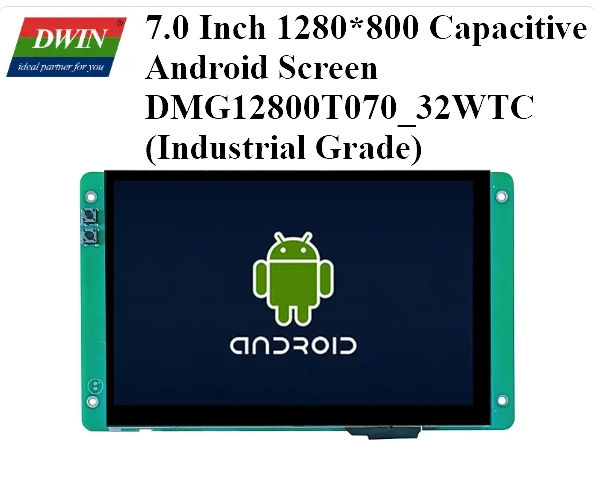

● Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system.

● 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, capacitive touch.

● Compatible with WIFI, Bluetooth, microphone, camera and other rich peripherals.

● Available for USB and SD card updates.

● Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet, browsing, music and video playback, data copy, etc.

● Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.

CPU    RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor OS    Android 11 FLASH    8Gbytes EMMC RAM    2Gbytes LPDDR4 Note: This model do not support using Google Play Store

Display Parameters

Color    16.7M(16777216)colors Panel Type    IPS Viewing Angle    85/85/85/85 (L/R/U/D) Active Area (A.A.)    149.76mm (W)*93.60mm (H) Visible Area (V.A.)    150.76mm (W)*94.60mm (H) Resolution    1280*800 Pixel Backlight    LED Brightness    250nit

Power Supply     Power Voltage   9.0   12.0  MAX 23.0 V

Recommended power supply: 12V 1A DC

Interface Parameters

User Interface      10Pin_3.81mm Horizontal socket

COM       RS232*2(COM5 & COM9), RS485*1, RS232/TTL*1(COM0, RS232 default)

Ethernet     10/100Mbps

USB     USB 2.0*2(HOST), Mirco USB*1(OTG)

SD Card    Max 64G

RTC      Accuracy: ±20ppm @25℃

Speaker     2Pin_1.25mm interface*1

Microphone    2Pin_1.25mm interface*1

Headphone     3.5mm spacing interface*1

Camera   MIPI interface

Wi-Fi    IEEE 802.11Bb/g/n, 2.4GHz, Bluetooth

Bluetooth    4.2GHz
