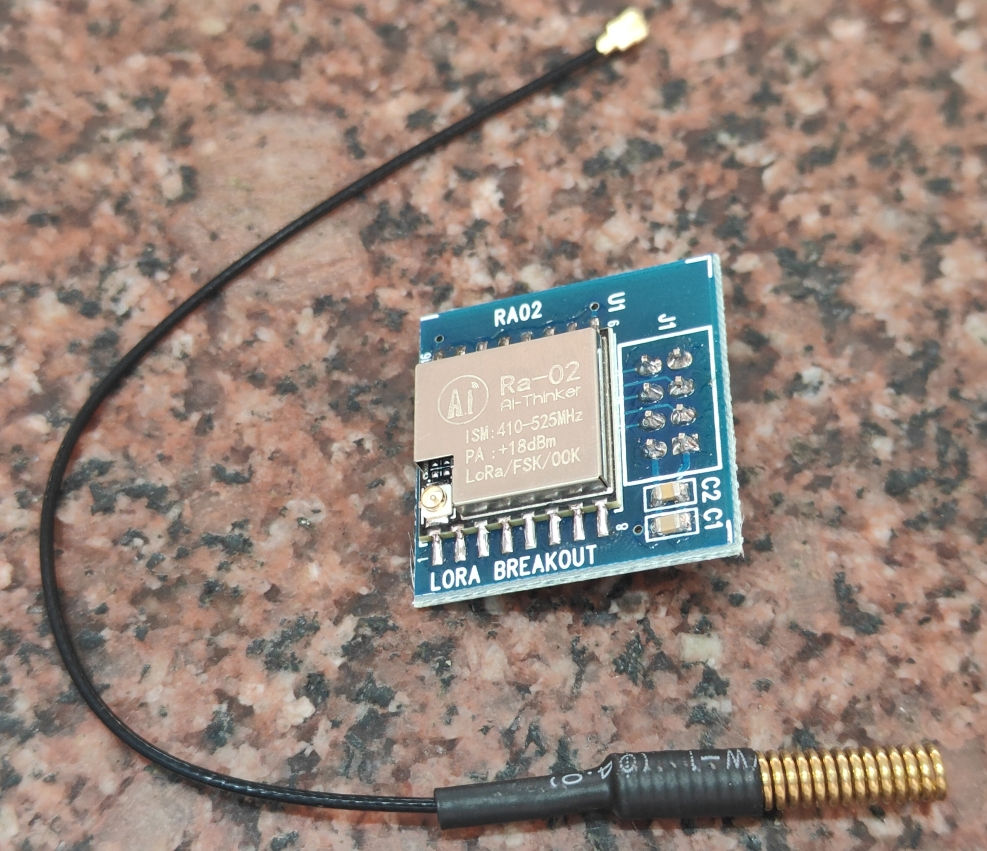

LoRa Ra-02 SX1278 Module 433MHZ

Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10Km (practically 1 to 2 km). It has strong ability of anti-jamming and has the function of air wake-up consumption.
Thanks to SEMTECH's patented LoRa ™ modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability.

Features
LoRa ™ Spread Spectrum modulation technology
Constant RF power output at + 20dBm-100mW voltage change
High sensitivity: down to -148dBm
Half-duplex SPI communication
Programmable bit rates up to 300kbps
Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
127dB RSSI dynamic range
Automatic RF signal detection, CAD mode and very high speed AFC
Packet engine with CRC up to 256 bytes
Small footprint dual-row stamp-hole patch package
Shielded housing
Specifications
Communication distance: 15KM
Sensitivity: down to -148dBm
Programmable bit rates: up to 300kbps
RSSI dynamic range: 127dB
Wireless frequency: 433MHz
Working voltage: 1.8-3.7v
Working temperature: -40-+80 ℃
