FLASH Memory     120 MB  Store fonts and images EEPROM      1024 BYTE  User Storage RAM Memory     512 KBYTE  Store variables Instruction Buffer 4096 BYTE

Serial Port Mode  3.3V/5.0V TTL Serial Port       4Pin_2.54mm Baud Rate max     115200 bps

SD card socket     Yes (FAT32 format), support maximum 32G Micro SD Card

Extended IO     8 Digital extended GPIO     IO0-IO7 support input, output and component binding event     IO4-IO7 support PWM     IO pin / ports are not exclusive, limit current draw to 1mA recommended RTC         built-in RTC support (Battery type: CR1220)

Operating Voltage  5V Operating Current  220mA

Resolution     800×480 pixel     Also can be set as 480x800

Touch type     RESISTIVE      Touches     > 1 million      Backlight     LED      Backlight lifetime (Average)     >30,000 Hours      Brightness     230NIT

Audio Features Speaker    Power    16Ω 0.5W Audio Connector Type：1.25T-2-2A (1.25mm pitch 2-pin housing)

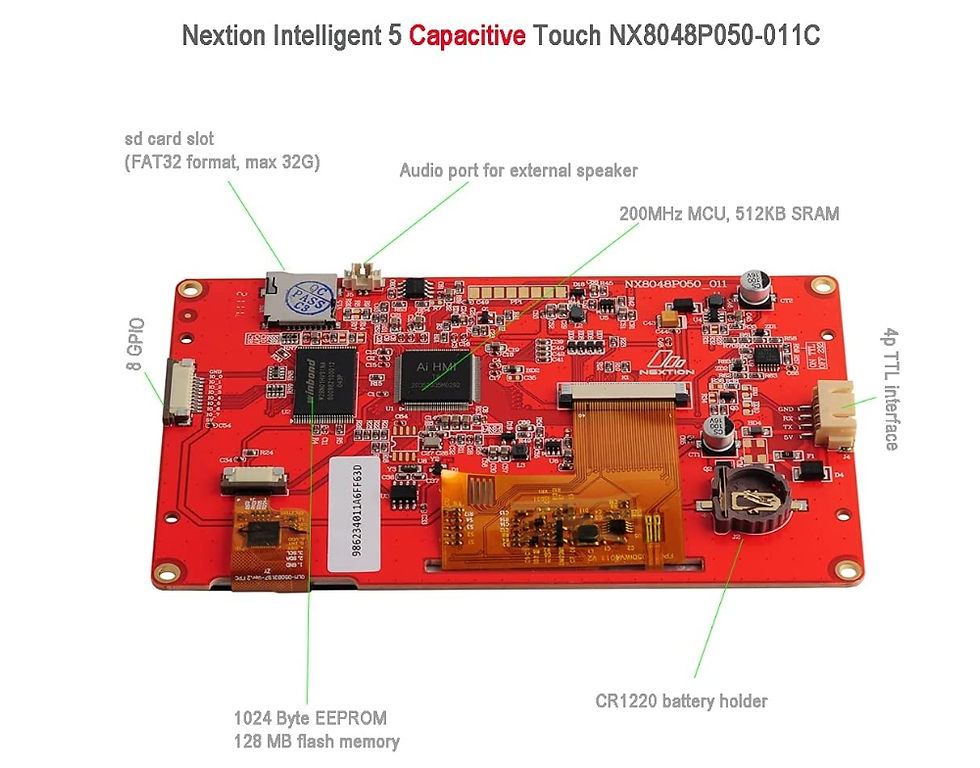

Nextion NX8048P050-011C is a 5.0" Intelligent series SMART HMI Touch display having capacitive touch screen.This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to your Microcontroller using simple UART port.

Features of NX8048P050-011C Resistive Touch Screen Display

• 5” LCD-TFT HMI display module

• 840 x 480 screen resolution

• RGB 65K true-to-life colours

• Capacitive touch panel

• 300 nit Brightness

• Onboard 200MHz MCU

• 512 KB of SRAM

• 128 MB of Flash memory

• 1024 Byte EEPROM

• XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

• 1.25T-2-2A Audio port for external speaker connection

• 8 Digital extended GPIO (IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)

• Built-in RTC support
