Orange Pi 3 LTS is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0 .

Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian.

Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0,etc. It is powered through Type-C.

It is a good choice for applications that need strong networking perfomance.


Debian OS :


Hardware specification

CPUAllwinner H6
Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
GPU• High-performance multi-core GPU Mali T720
• OpenGL ES3.1/3.0/2.0/1.1
• Microsoft DirectX 11 FL9_3
• ASTC(Adaptive Scalable Texture Compression)
• Floating point operation greater than 70 GFLOPS
Power management chipAXP805
RAM2GB LPDDR3 (shared with GPU)
Onboard Storage• Micro SD card slot
• 8GB EMMC Flash
Onboard Network• YT8531C Chip
• Support 10/100M/1000M Ethernet
Onboard WiFi+Bluetooth• AW859A Chip
• Support IEEE 802.11 a/b/g/n/ac
• Support BT5.0
Video Output• HDMI 2.0a
• TV CVBS Output
Audio output• HDMI Output
• 3.5mm Audio Port
Power Source5V3A Type-C
USB1* USB 3.0 HOST、2* USB 2.0 HOST
Low-level peripherals26pin connector with1* I2C, 1*SPI, 1*UART &Multiple GPIO Ports

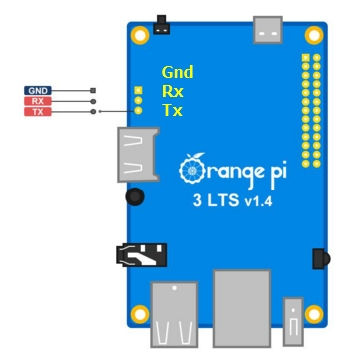

Debug serial portUART-TX、UART-RX & GND
ButtonPower Button (SW4)
LEDPower LED& Status LED
IR ReceiverSupport IR Remote Control
Supported OSAndroid 9.0、Ubuntu、Debian
